Thermal masonry mortar

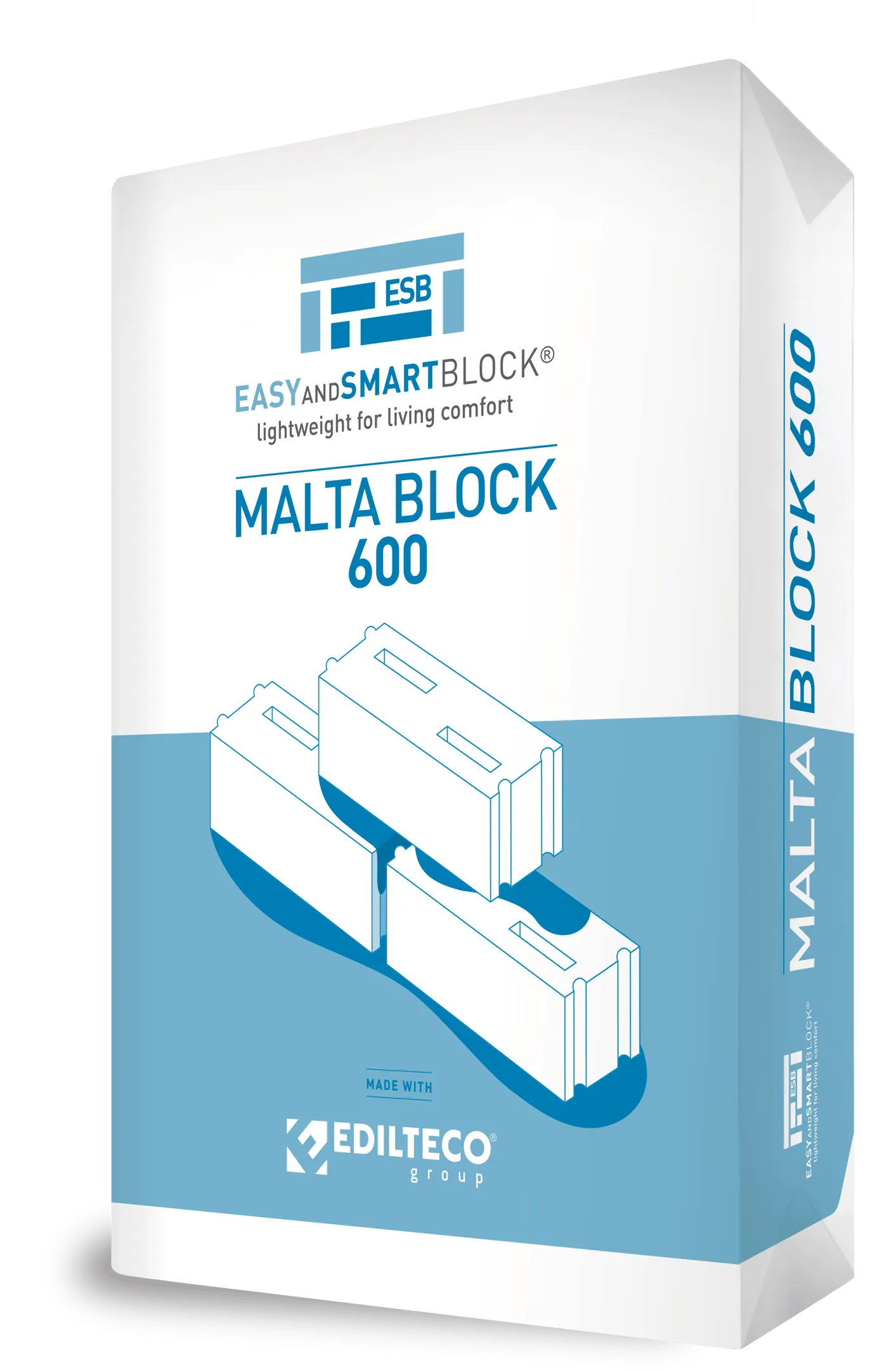

Malta Block 600: the thermal mortar for block masonry
Malta Block 600 is a pre-mixed mortar made of selected hydraulic binders and virgin EPS beads of 2–3 mm. It weighs about 600 kg/m³ when dry and has a conductivity of 0.158 W/mK: it is the laying mortar of the SMARTBLOCK® system and suits any masonry in insulating clay blocks or lightweight concrete blocks.
- 0.158λD W/mK
- M2.5EN 998-2
- A1reaction to fire
- ≈ 5 m²per 50 L bag
With a traditional mortar, every bed joint becomes a line that leaks heat through the wall. Malta Block 600 has a conductivity much closer to that of the block, so the joint does not become a thermal bridge and the wall works as one insulating layer.
Technical data
| Standard | EN 998-2, masonry mortar |
|---|---|
| Strength class | M2.5 (> 2.5 N/mm² in compression) |
| Flexural strength | > 0.69 N/mm² |
| Thermal conductivity λD | 0.158 W/mK |
| Density (dry mortar) | about 600 kg/m³ |
| Reaction to fire | Euroclass A1 |
| Water absorption | 0.09 kg/(m²·min⁰·⁵), class W2 |
| Vapour permeability µ | 13 |
| Soluble chlorides | < 0.02% |
| Initial shear strength | 0.15 N/mm² (tabulated value) |
How to use it
- Mix each bag with 15–18 litres of water for 5–10 minutes, with a paddle mixer or a concrete mixer. Check the water quantity whenever you start a new pallet.
- The substrate must be free of dust, efflorescence, oil and grease. In hot weather, wet the clay blocks first.
- Apply between +5 °C and +35 °C, never in direct sunlight.

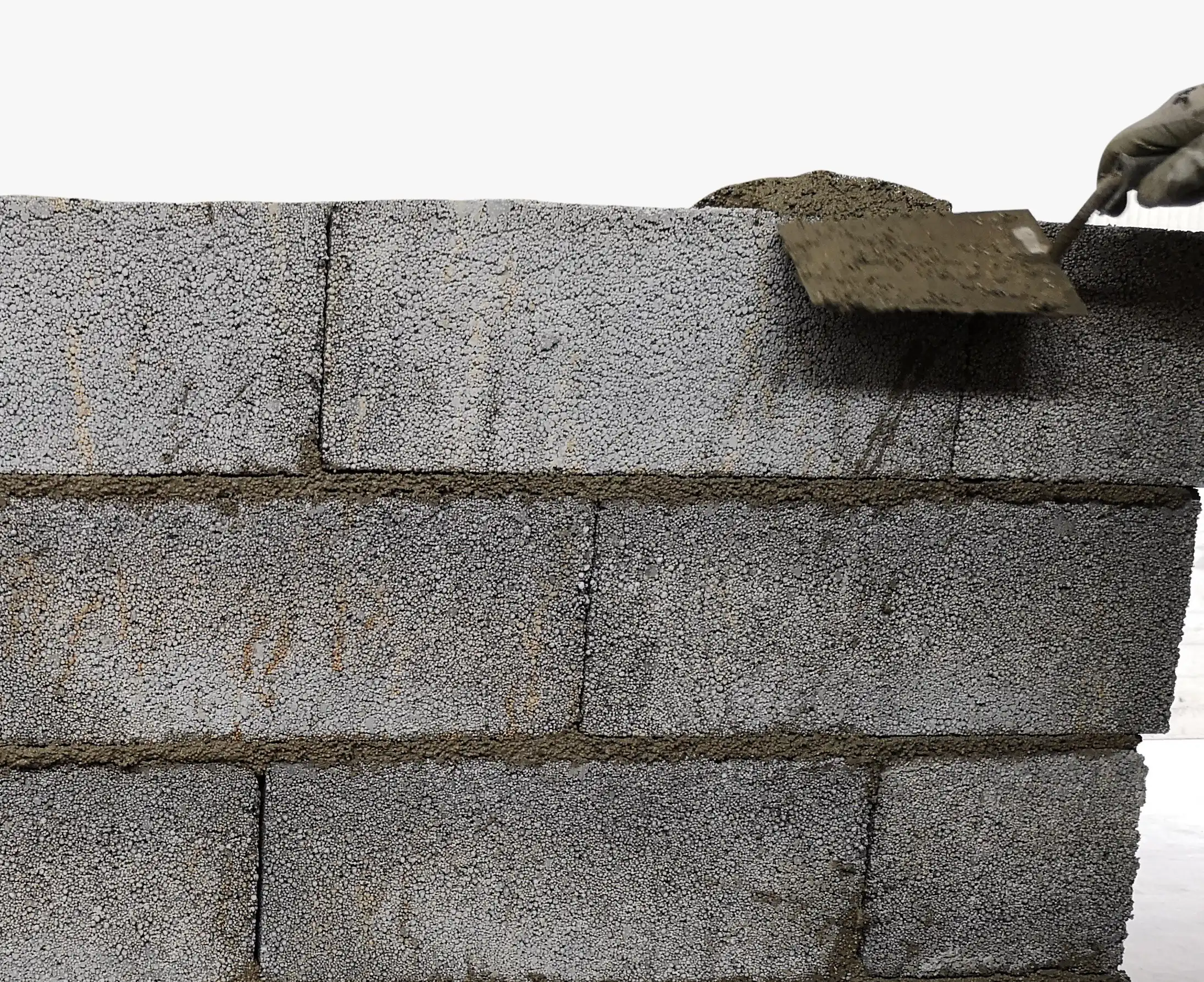

- In the SMARTBLOCK® system the first course is laid on cement mortar; all following courses, the sealing of chases and the finishing of openings are done with Malta Block 600.
Packaging and yield
- Bags of 50 litres of mixed product.
- Pallets of 40 bags (44 or 48 on request).
- Yield: 1 bag for about 5 m² of masonry.
- Use within 6 months; if stored properly it keeps its properties beyond 12 months.
