Equipment to cut, mix and seal
For laying SMARTBLOCK® blocks, ESB offers three pieces of equipment designed for the building site: a band saw for accurate dry cuts, mixers for mortars and a professional polyurethane foam gun.

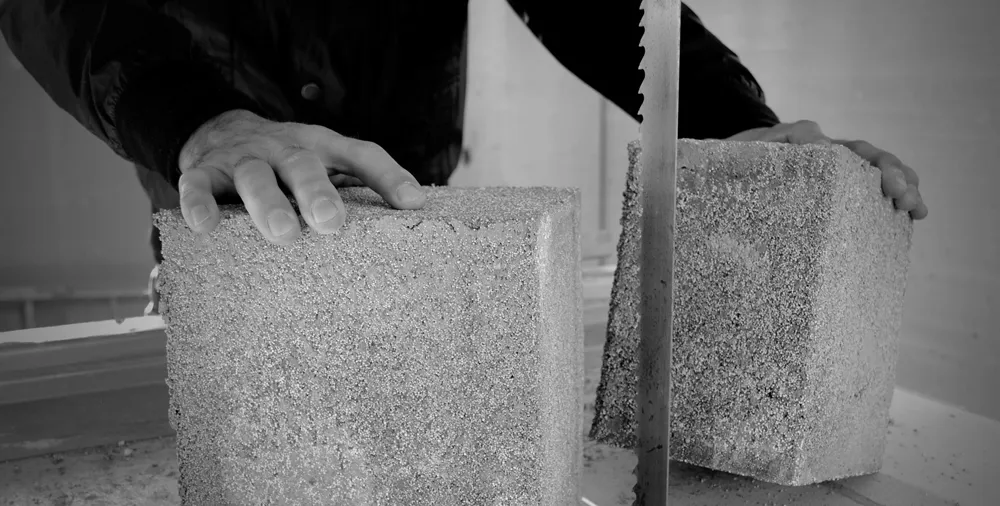

ESB.ATHENA.515 band saw
Heavy-duty band saw in painted steel with a sliding work table and fixed blade. It dry-cuts aerated concrete, lightweight blocks, Poroton, bricks and clay blocks, both vertically and lengthwise. It switches off automatically at the end of the table stroke, produces little dust and is ready for a dust extractor. It has a 0–90° graduated square, an inclined guide for hollow bricks, wheels, a handle and a lifting hook.
| Cutting height | 500 mm |
|---|---|
| Cutting length | 655 mm |
| Motor | 2.2 kW, 230 V, 50 Hz |
| Blade | 3850 mm |
| Work table | 715 × 1040 mm, height 785 mm |
| Overall size | 1040 × 940 × 1860 mm |
| Weight | 200 kg |
Power Mix mixers
A wheeled mixer with a 65-litre tub and two hand-held mixers for preparing mortars and plasters on site.
| Model | Power | Capacity | Weight | Features |
|---|---|---|---|---|
| ESB.MIX.65 | 750 W | 65 L | 39 kg | Wheeled, removable plastic tub, safety switch on the lid |
| ESB.MIX.120 | 1300 W | 120 L | 6.2 kg | Hand-held, 2 speeds, soft start, M14 fitting |
| ESB.MIX.200 | 1600 W | 200 L | 6.5 kg | Hand-held, 2 speeds, M14 fitting |
Polyurethane foam gun
Professional metal gun for polyurethane foams and cleaners, used to seal the top joint of the wall and connections.
Availability, spare blades and supply conditions on request. Data from the ESB equipment catalogue.
Need equipment for your site?
Tell us thickness, square metres and site location: we will reply with availability and conditions.
